Junction Box (JB/SB)
IP Rating:
IP67
Material:
1.2mm CRCA
Gaskets:
Fire Retardant
Junction Boxes from NexGen Enclosures feature IP67 ingress protection with welded 1.2mm thick CRCA construction. Designed for compact applications with front-only access, these enclosures use fire-retardant gaskets and M4 tapped Z angles for DIN rail mounting.
Key Highlights
- ✅ IP67 Ingress Protection
- ✅ Welded 1.2mm CRCA body
- ✅ Fire retardant gaskets
- ✅ DIN rail mounting angles
Ideal Applications
Electrical Junctions
Signal Boxes
Terminal Blocks
DIN Rail Components
Standard Size Range
IP67 Protection
Complete dust protection and immersion up to 1m water for 30 minutes. Polyethylene door gasket ensures reliable sealing.
Fire Retardant
Polyethylene gaskets on door and polyurethane foam on gland plate provide fire retardant protection.

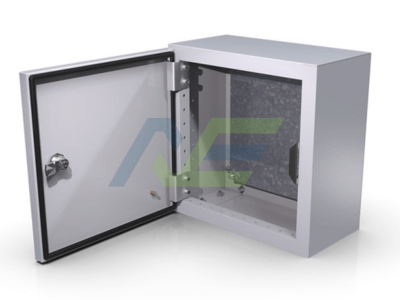

Single Front Door
1.2mm CRCA sheet door with metal hinges and cam locks for secure front access only.
DIN Rail Mounting
M4 tapped Z angles inside for standard DIN rail mounting. No component mounting plate required.
| Specification | Details |
|---|---|
| Body Construction | Welded 1.2mm thick folded CRCA, sides/top/bottom closed |
| Door | 1.2mm CRCA single front door with metal hinges, cam locks |
| IP Rating | IP67 Ingress Protection |
| Gaskets | Polyethylene door gasket, polyurethane foam gland plate (fire retardant) |
| Mounting | M4 tapped Z angles for DIN rail mounting |
| Gland Plate | Optional 2.0mm CRCA at bottom |
| Access | Front only (sides and top closed) |
| Separators | Not required (non-removable side walls) |
