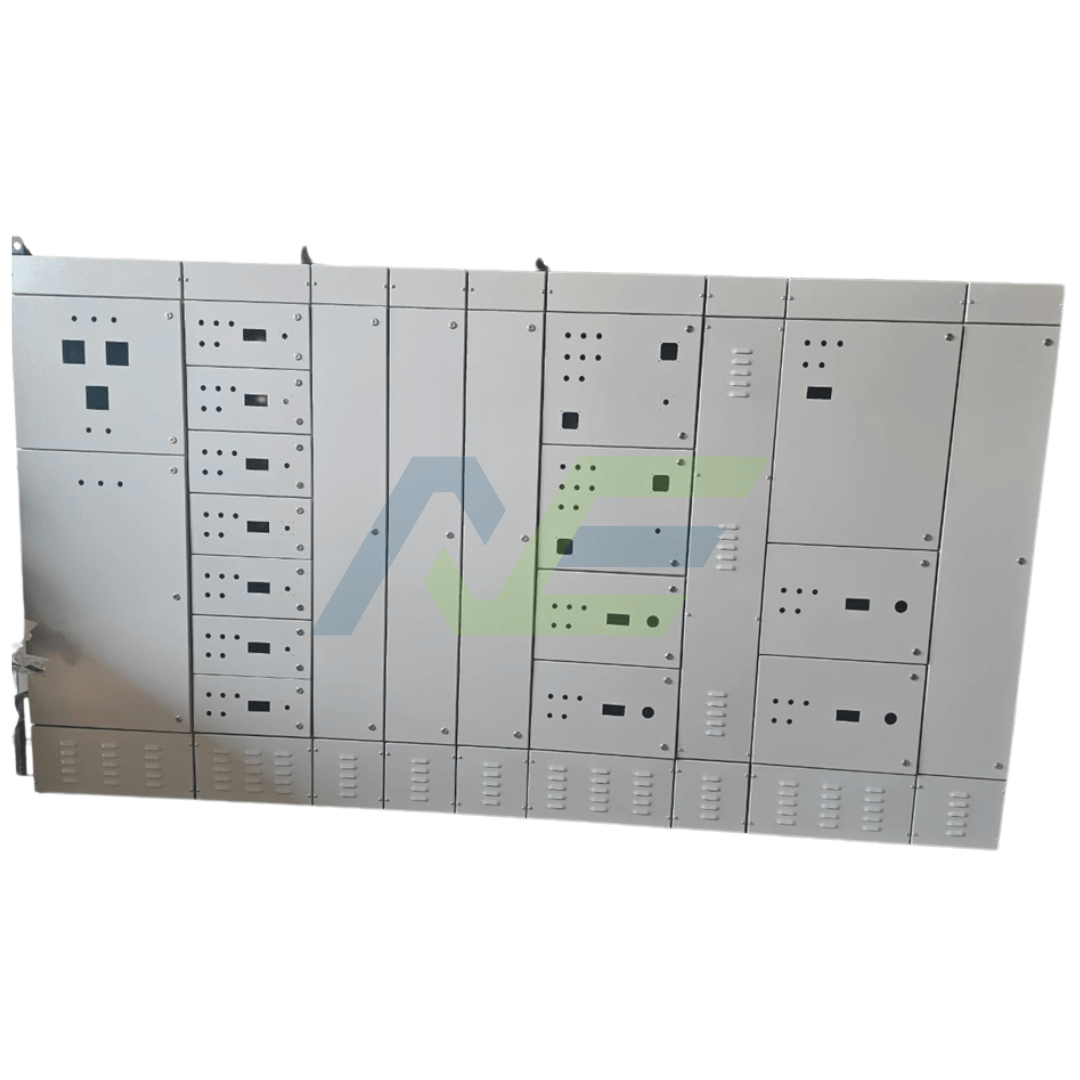

Modular MCC / PCC / Control Panel Enclosure
Precision-engineered Modular MCC/PCC/Control Panel Enclosures from NexGen Enclosures deliver superior strength even at 1200mm depth with IP54 protection. Each compartment functions as a separate box allowing complete elevation alterations at any stage without extensive pre-engineering.
Key Highlights
- ✅ Best IP54 protection
- ✅ Exceptional strength for 1200mm depth
- ✅ True modularity for internal assembly
- ✅ 12.5mm pitch punched holes
Ideal Applications
Standard Size Range
IP54 Protection
Fire retardant & chemical resistant polyurethane foamed D-type gaskets ensure superior sealing and protection up to 1000°C temperature.
Modular Design
Each compartment is independent - detachable doors/covers, universal mounting, adjustable component plates & partitions for ultimate flexibility.
Precision Mounting
12.5mm pitch punched holes, depth/height adjustable mounting channels, angular terminal mounting for spacious access.
Easy Assembly
Clamped/folded gland plates, modular busbar chambers, sheet metal folded base with grouting holes or optional ISMC base.
| Specification | Details |
|---|---|
| IP Rating | IP54 Weatherproof |
| Mounting Holes | 12.5mm pitch punched holes throughout |
| Gaskets | Polyurethane foamed D-type (fire retardant, chemical resistant) |
| Doors/Covers | Detachable with stronger support channels (plated/powder coated) |
| Gland Plates | Clamped & folded in parts for easy site drilling |
| Busbar Chamber | Easy modular busbar mounting provision |
